Xaar Midas HV HFR

Key benefits

  • Increased functionality and control
    Ability to shut off individual printheads for maintenance and shut down without loss of fluid
  • High volume output
    Scalable outlets, up to five, to support printbar application
  • Ease of integration
    Compact in size with the ability to supply numerous printheads for integration into larger machines

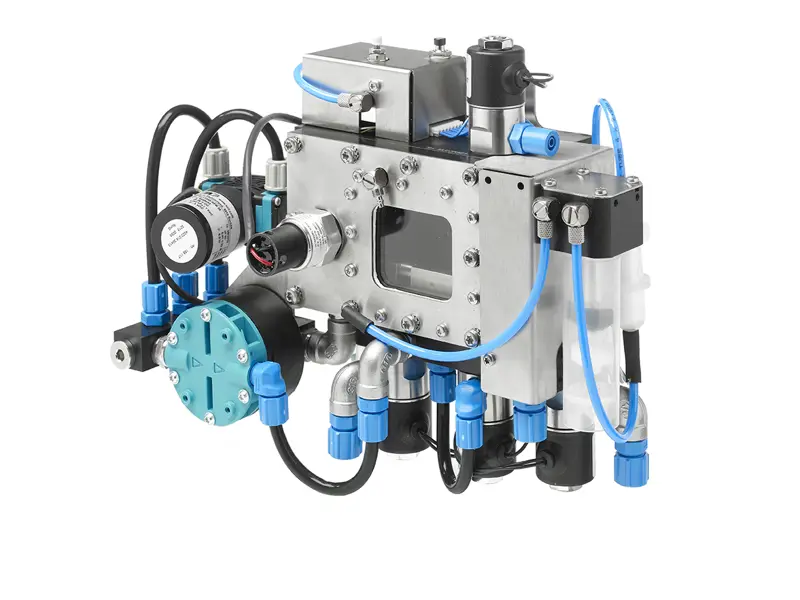

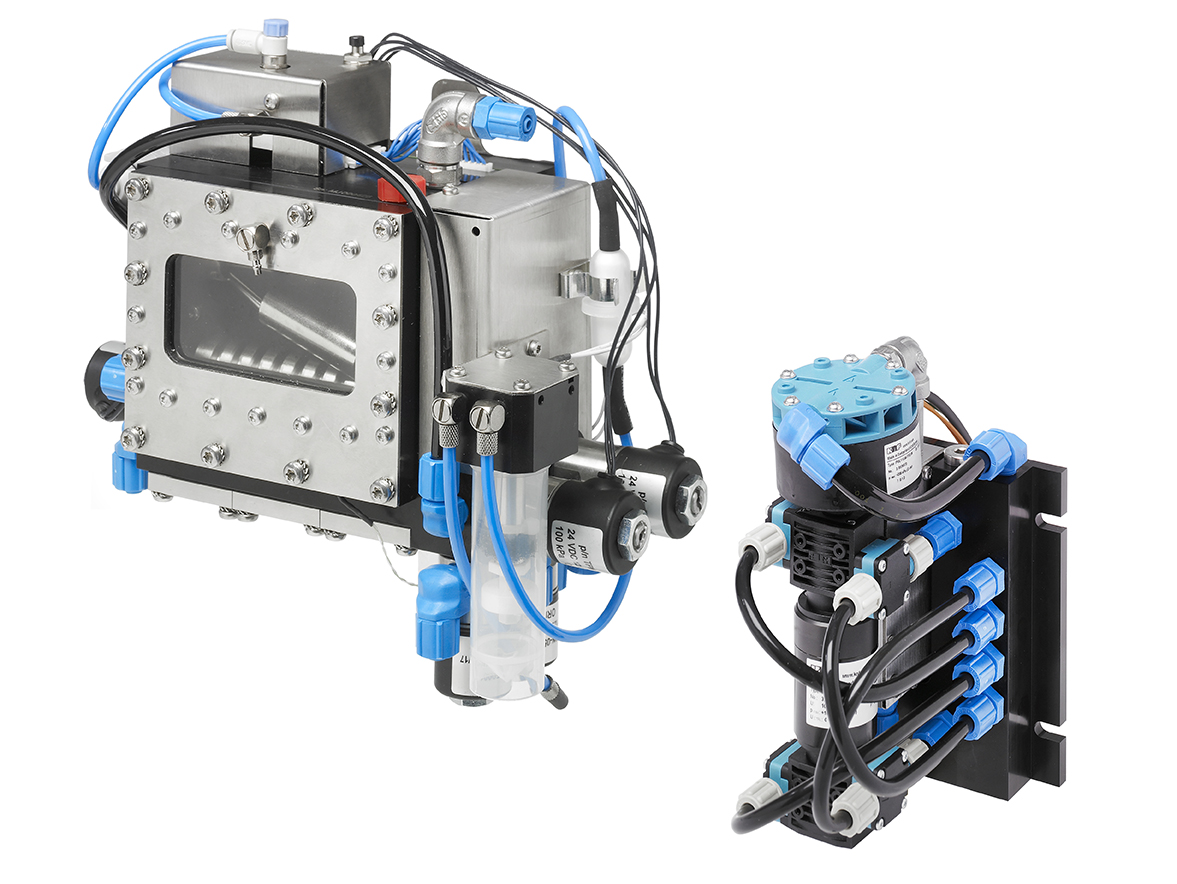

Compact system for industrial high flow and pressure-fed printheads

The updated Xaar Midas HV HFR Ink Supply System is a compact fluid supply system with a high volume output capable of supplying fluid for up to five individual printheads. It is ideal for OEMs and integrators who are looking to scale up to support wider printbars as well as prototype systems where a fast time-to-market and therefore low development costs are required.

Ease of integration is a key advantage of the Xaar Midas Ink Supply System. It is compact in size, easy to mount and has an ink tank capacity designed to provide a stable and reliable ink supply, ideal for integrations into larger machines.

Key features of the Midas solution are:

  • An integrated printhead shut-off valve and failsafe chamber with automatic shutdown protects against ink loss during power failure
  • There is no need for external air sources or vacuum pumps
  • Changing fluids in under 30 minutes is enabled via the software
  • Ink temperature can be controlled up to 65°C and is recirculated within the angled tank to avoid settling, which is particularly useful for heavily pigmented inks
  • Consistent high print quality in single-pass and scanning modes is ensured by the integrated hydraulic meniscus measurement system.
  • The system automatically compensates the meniscus pressure within the printhead as fluid levels inside the integrated fluid reservoir change during usage.

Connectivity to Printhead Maximum flow rate (mL/min) 450 or 1500 (dependent upon pump selected)
  Maximum in-feed pressure (mbars) 600
  Maximum return pressure (mbars) -200
  Line connections Up to 2 factory fitted and 3 optional extras
Fluid Compatibility Fluid types Aqueous, Oil, Solvent and UV Curable
  Fluid viscosity at jetting temperature (cP) 7-25
  Fluid temperature range (°C) 65 (+/-1)
  Built-in filter (μm) 10 (field replaceable)
Installation Unit to printhead distance (m) Up to 1
  Bulk fluid tank to unit distance (m) Up to 2
Operation Control Standalone or with supplied SW
  Ink system volume (ml) 150
  Typical start-up time (min) 15
  Typical shutdown time (min) 5
Electrical Voltage (VDC) 24
  Current (A) 6-8
  Communication interface 4-wire RS422/485 interface. Optional USB to RS422 adapter
  Compliance CE (EU), MET (US)
Physical Mass, dry (kg) 5.74
  ISS dimensions (mm) 235 x 110 x 215
  PSU dimensions (mm) 45 x 200 x 80
Applications Single pass Yes
  Scanning Yes
  High laydown Yes

Compact system for industrial high flow and pressure-fed printheads

The updated Xaar Midas HV HFR Ink Supply System is a compact fluid supply system with a high volume output capable of supplying fluid for up to five individual printheads. It is ideal for OEMs and integrators who are looking to scale up to support wider printbars as well as prototype systems where a fast time-to-market and therefore low development costs are required.

Ease of integration is a key advantage of the Xaar Midas Ink Supply System. It is compact in size, easy to mount and has an ink tank capacity designed to provide a stable and reliable ink supply, ideal for integrations into larger machines.

Key features of the Midas solution are:

  • An integrated printhead shut-off valve and failsafe chamber with automatic shutdown
  • protects against ink loss during power failure
  • There is no need for external air sources or vacuum pumps
  • Changing fluids in under 30 minutes is enabled via the software
  • Ink temperature can be controlled up to 65°C and is recirculated within the angled
  • tank to avoid settling, which is particularly useful for heavily pigmented inks
  • Consistent high print quality in single-pass and scanning modes is ensured by the
  • integrated hydraulic meniscus measurement system. The system automatically
  • compensates the meniscus pressure within the printhead as fluid levels inside the
  • integrated fluid reservoir change during usage.

Connectivity to Printhead
Maximum flow rate (mL/min) 450 or 1500 (dependent upon pump selected)
Maximum in-feed pressure (mbars) 600
Maximum return pressure (mbars) -200
Line connections Up to 2 factory fitted and 3 optional extras
Fluid Compatibility
Fluid types Aqueous, Oil, Solvent and UV Curable
Fluid viscosity at jetting temperature (cP) 7-25
Fluid temperature range (°C) 65 (+/-1)
Built-in filter (μm) 10 (field replaceable)
Installation
Unit to printhead distance (m) Up to 1
Bulk fluid tank to unit distance (m) Up to 2
Operation
Control Standalone or with supplied SW
Ink system volume (ml) 150
Typical start-up time (min) 15
Typical shutdown time (min) 5
Electrical
Voltage (VDC) 24
Current (A) 6-8
Communication interface 4-wire RS422/485 interface. Optional USB to RS422 adapter
Compliance CE (EU), MET (US)
Physical
Mass, dry (kg) 5.74
FMS dimensions (mm) 235 x 110 x 215
PSU dimensions (mm) 45 x 200 x 80
Applications
Single pass Yes
Scanning Yes
High laydown Yes

Related Resources

Your guide to a successful inkjet development project

Seize the inkjet opportunity with Xaar

View All

Related Products

Xaar Hydra OLD text

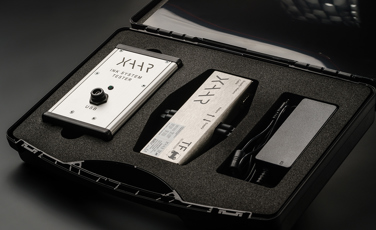

Xaar Ink System Test Kit X-IST
